Analysis Setup Tab

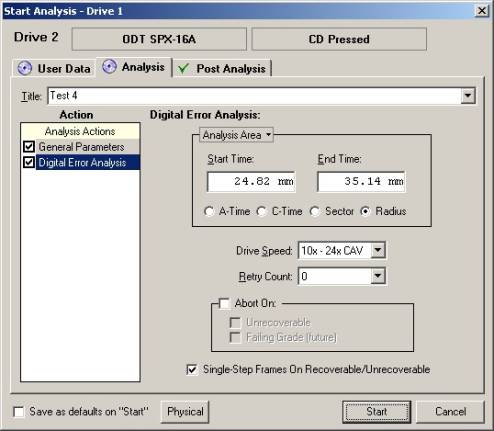

ANALYSIS TAB – the test analysis screen has many options. The first prompt is for the test title. This is not the saved file name but a sub descriptor for the test. This title is limited to 255 characters. The file name and test name can be made the same (see Tools/Options menu) or they may be incremented with the test/file name programming language (see programming functions).

Digital Error Analysis Action

Analysis Area – choose the start and end time of the test. This can be defined by using A-time, Track time or C-Time, Sectors, or Radial position. The radial position mode may be used to monitor the physical position of a flaw. It also adds a third axis to the error graphics.
